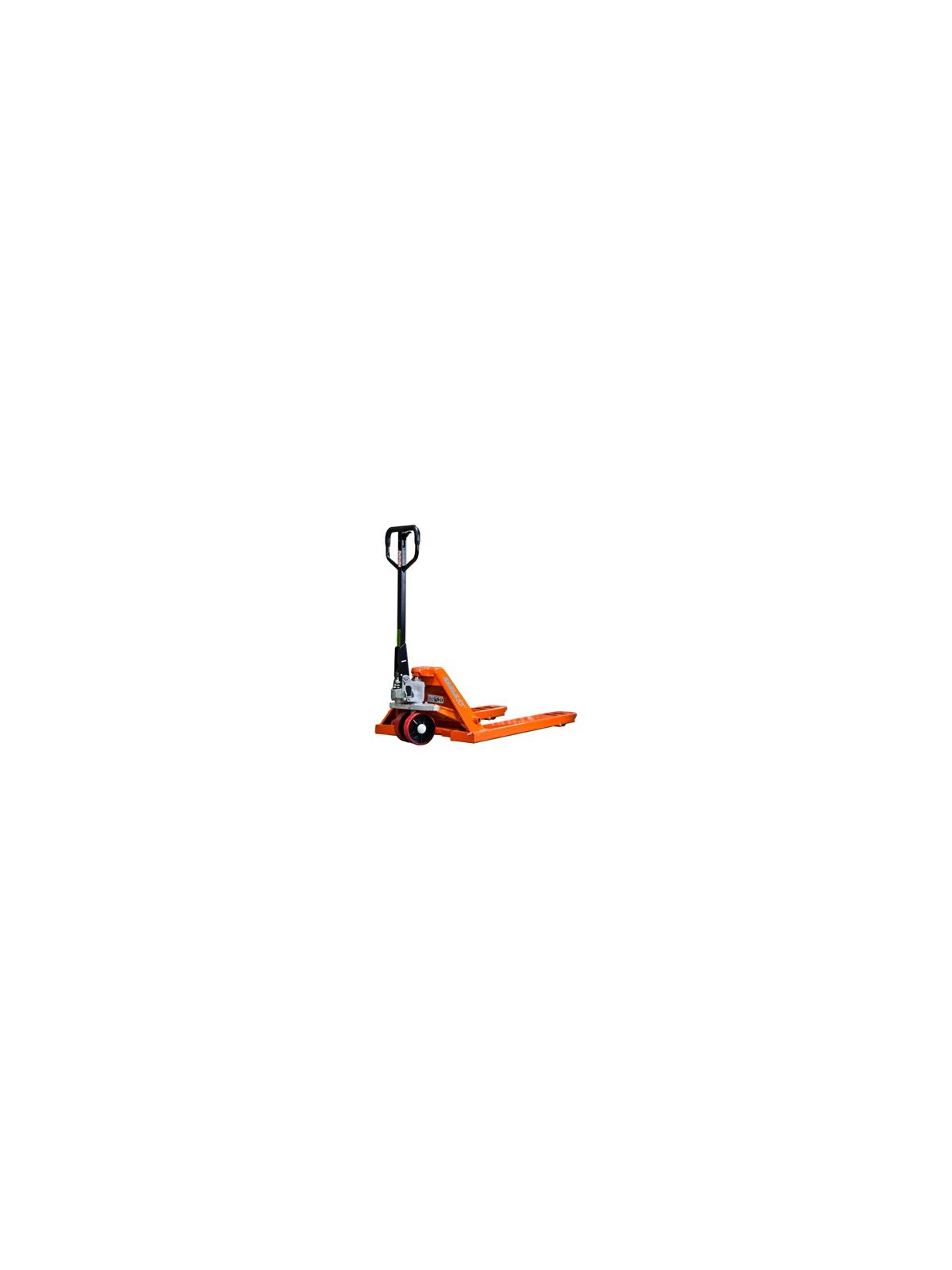

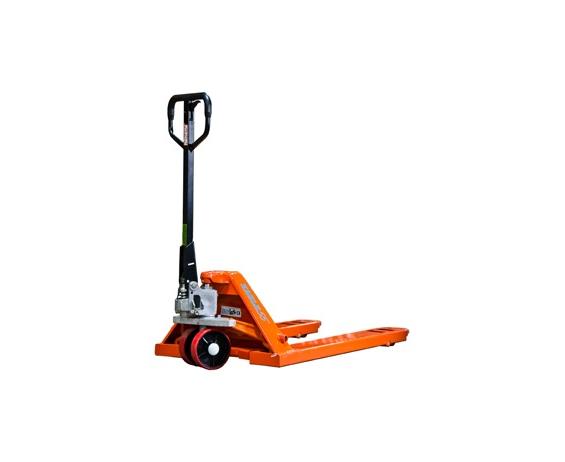

This pallet jack offers key features and quality components at an economical price. Experienced users will appreciate the variable speed lowering control, and the articulating steering axle. The hydraulic pump is a time proven design with overload bypass, premium German seals, and a hardened chrome piston and ram. Every unit is triple tested at 5500 lb. capacity (static machine test, pulsating machine test, and a manual lifting test) to ensure quality.
Capacity: Pump - 5500 lbs., Frame - 5500lbs.
Fork Length: Standard 48"
Fork Width: Fork Width 6.3", Overall Width 27"
Fork Height: Lowered Height 2.95", Raised Height 7.67"
Controls: 3 position + variable lever, steel control rod, spring return
Drive: 1" Articulating axle, ball- thrust steering, 205° turning arc
Pump: U ni- body, urethane seals, variable speed, overload bypass
Lift: Solid steel pushrod bars with adjustable steel links
Forks: Box flanged reinforcement, slip skids, entry rollers
Wheels: 7" Polyurethane on steel hubs with sealed roller bearings
Rollers: 3.5" Polyurethane on steel hubs with sealed roller bearings
Finish: Electrostatic powder coat with anti-rust pretreatment
